NH40
NH40
75mm ball and flat base video head, Long Plate S included, payload 10kg
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
|---|---|
 |
Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
 |
| Specifications | |
|---|---|
| Counterbalance Range | 0 to 10kg / 0 to 22lb(C.G.55mm) |
| Payload | 10kg / 22lb |

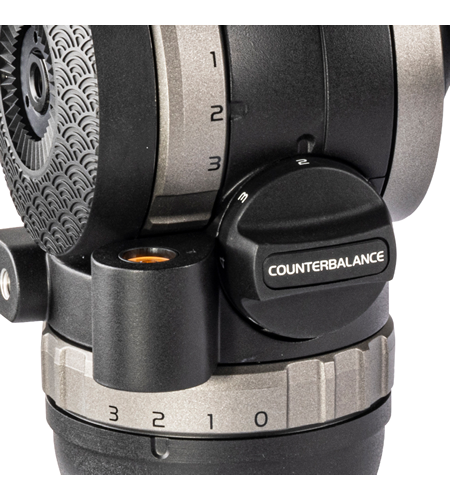

| Counterbalance | Free plus 5STEP |
| Drag mode | Free plus 3STEP |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° to -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| Compatible with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Long sliding plate | Included |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachment | 1/4" and 3/8" screws holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 1.8kg / 4lb |
