RSP-850PD(S)
Pedestal with Head

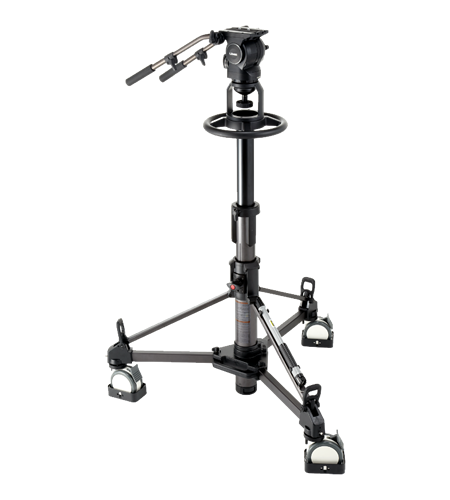

Libec RSP-850PD(S) Pedestal System with RHP85 Head, P110 Pedestal Column and DL10B Studio Dolly
RHP85 Pan Tilt Fluid Head, 2x PH-8B Extendable Pan Handles, Extra Slide L Plate
- 55lb/25kg payload for Studio Broadcast setups
- Step-free Continuous Counterbalance Technology for perfect camera balance
- Unique Balance Stabilizer Mechanism prevents the slightest wobble/backlash
- Sealed torque unit contributes to a smooth start to finish pan & tilt movements
- Snap On/Off Quick Release Sliding Plate attaches/detaches with one touch
P110 Pneumatic Pedestal Column (100mm)
- 2-stage pneumatic pedestal offers smooth camera elevations for cameras setups up to 66lbs/30kg
- Perform smooth pedestal shots ideal for Outside Broadcast studios
- Double bearing system prevents wobbling generated by quick vertical movements
- Air pressure can be added/released without removing camera equipment
- Setup is fast and easy using the supplied air pump
DL-10B Studio Dolly with Cable Guards
- Tracking locking mechanism ensures straight-line movement by locking the caster direction
- Cable guards prevent the wheels from running over cables during studio production
- User friendly foot-activated lock & release pedals
- Large-sized double-wheel 5” diameter casters
Specifications
| Ball diameter | 100mm |
| Bubble level | Illuminated |
| Camera plate | 2 Sliding plates (Standard + Long) |
| Counterbalance | Continuous |
| Counterbalance Range | 9 to 20kg / 20.0 to 44.0lb (C.G.125mm) |
| Drag mode | 7STEP |
| Height | 98.5 to 173.5cm / 39.0 to 68.5" |
| Payload | 25kg / 55.0lb |
| Plate attachment | 3/8" screw _ 2 |
| Section | 2STAGE |
| Sliding range | +/-55mm / 2.2" (Standard) '+/-85mm / 3.3" (Long) |
| Spare screw | 3/8" screw |
| Weight | 23.0kg / 50.6lb |
