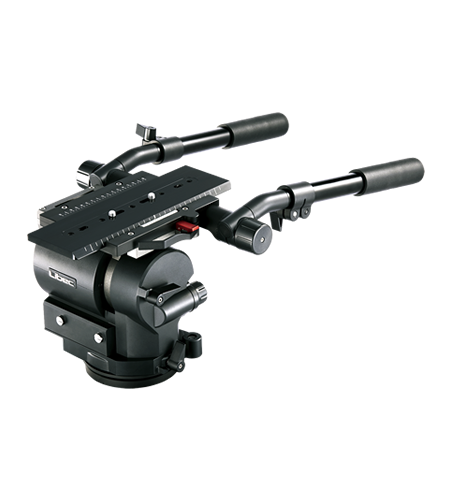

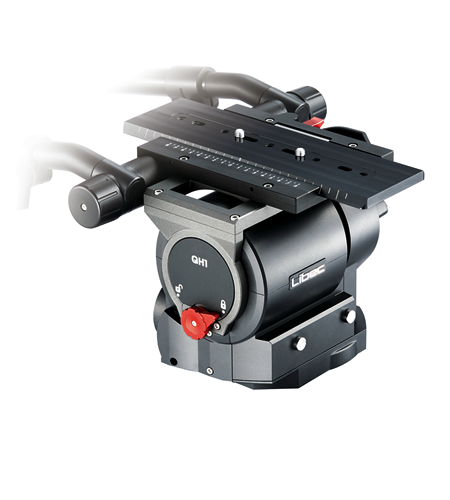

[NAB Special] QH1

QH1

150mm ball and flat base video head, payload 40kg, Perfect Balance

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle.

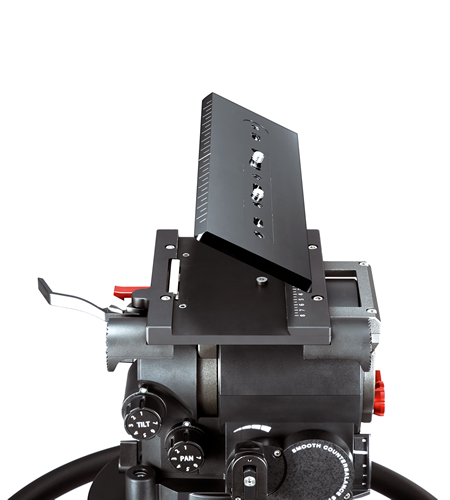

The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup.

Specifications

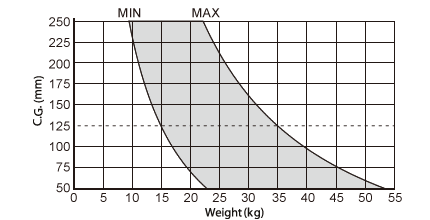

Counterbalance range	15 to 35kg / 33 to 77lb (C.G.125mm)
Payload	40kg / 88lb
Counterbalance	Perfect Balance

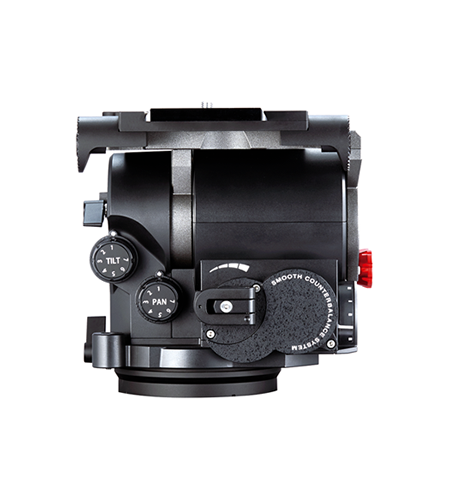

Counterbalance	Continuous Counterbalance with Meter
Drag mode	7 steps
Drag system	Multilayered Metal Structure
Tilt angle	+90° to -70°
Temperature range	-20°C to +60°C / -4°F to +140°F
Bubble level	Illuminated
Camera plate	Sliding plate
Sliding range	+/-75mm / +/-2.9"

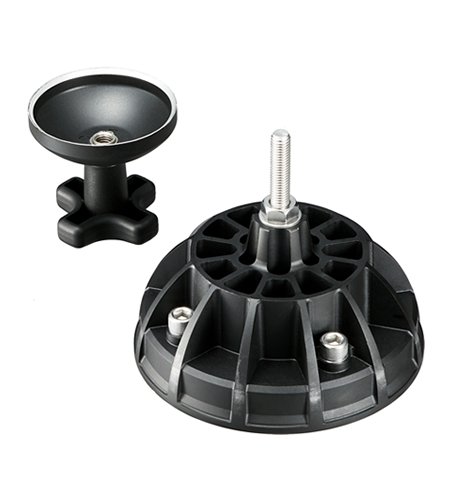

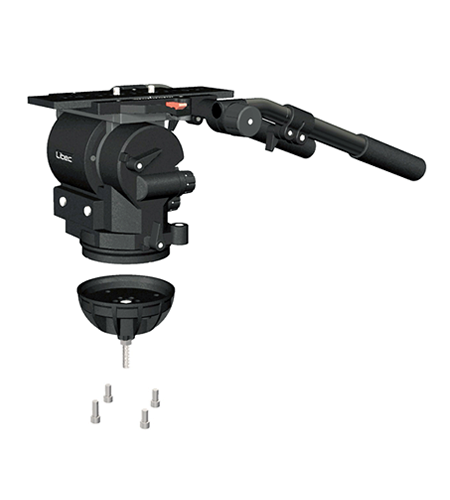

Head base	150mm ball / Flat base with 4 bolts
Plate attachment	3/8" screw × 2
Spare screw	3/8" screw × 2
Weight	12.7kg / 27.9lb

More Information

Ball diameter	150mm ball / Flat base with 4 bolts
Bubble level	Illuminated
Counterbalance	Perfect Balance, Continuous Counterbalance with Meter
Counterbalance Range	15 to 35kg / 33 to 77lb (C.G.125mm)
Drag mode	7 steps
Payload	40kg / 88lb
Plate attachment	3/8" screw × 2
Sliding range	+/-75mm / +/-2.9"
Spare screw	3/8" screw × 2
Temperature range	-20°C to +60°C / -4°F to +140°F
Tilt angle	+90° to -70°
Weight	12.7kg / 27.9lb
